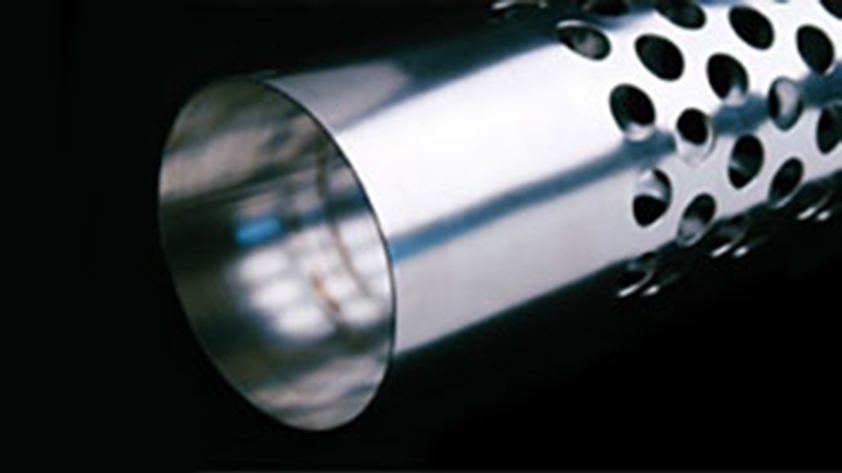

Guide Tube Assemblies

The guide tube assembly is manufactured from a tubular Zircaloy in-core guide tube and stainless steel out of core section called the guide tube extension.

Guide tubes are tensioned by coil springs at the bottom of the tube which act on couplings attached to the locators.
